What is a Magnetic Drilling Machine?
What Composes a Magnetic Drilling Machine ?
Where to Use the Magnetic Drilling Machine ?
Why Use a Magnetic Drilling Machine?
How to Maintain a Magnetic Drilling Machine?
How to Choose a Magnetic Drilling Machine?




What is Magnetic Drilling Machine

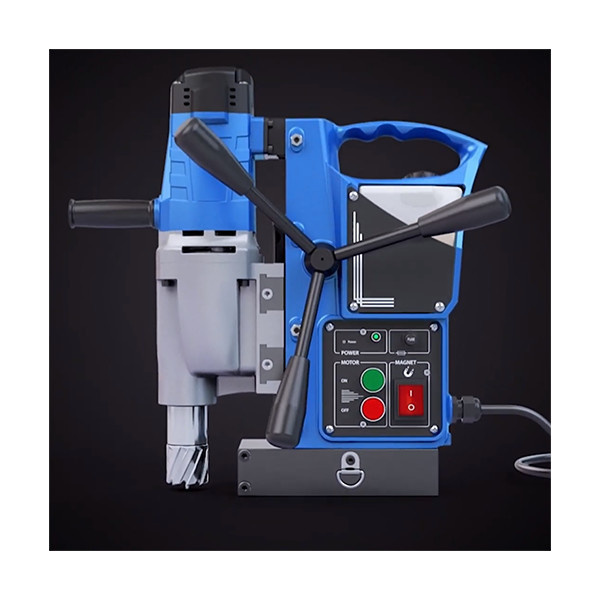

A magnetic drilling machine is used for cutting holes in metals on the worksite. It is a portable drilling machine with a magnetic base (electromagnetic or permanent magnet base) and a cutting tool attachment.


Equipped with a strong magnetic base, the portable magnetic drilling machine is able to adhere to steel or other magnetic materials (ferrous metal) surface horizontally, vertically, or upside down. When with suitable cutting tools, such as annular cutters, core drills, twist drills, countersinks and other rotary cutters, a magnetic drilling machine can drill, tap threads, countersink and ream.


A magnetic drilling machine is also known as portable magnetic drill, magnetic drill press, magnetic core-drilling machine, mag base drill or mag drill.






What Composes a Magnetic Drilling Machine?


[ Magnet Base ]

Dual Coil Magnet _ Strong holding power to metal work piece - 3keego cutting tools


The magnet helps the magnetic drilling machine adhere on the metallic material surface steadily. When open the switch, separating from drilling switch, an electric current goes through the coil of wire to produce the magnetic field.

It is noticeable that the thickness of the metal work piece will affect the strength of the magnet base. If the material is not thick enough, the magnetic force will be too weak to hold the mag drill well.

Later, this article will show you Where to use the magnetic drilling machine?




[ Machine Body ]

Magnetic Drilling Machine Body - 3keego Cutting Tools


The magnet base, control panel, handle lever, motor and gear box are mounted in the stand part. The slide system of the magnetic drill press helps the motor move upward and downward. It's worth noting that 3keego's SMD35B, SMD50B and SMD75B is designed in novel shape with coolant tank inside. Besides, the structure of magnetic drill is all made of cast aluminum making the machine significantly stronger and lighter.



    The Advantage of Build-in Cooling System

  • Smooth coolant flow gets to cutting teeth instead of spinning off during drilling.
  • Help the slug eject smoothly when finishing drilling.
  • No need to bring a coolant tank and coolant separately.
  • Provide good cutting performance.
  • Extend cutting tool life.
  • No danger caused by long connected coolant tube.

Build-in Cooling System - 3keego Cutting Tools




[ Motor ]

Powerful Motor - 3keego Cutting Tools


Choose the motor type depend on the drilling requirement, such as material and thickness of work piece, diameter of hole, drilling speed. Our magnetic drilling machine is equipped with 110V or 220V AC motor. The motor power ranges from 1050 watts to 1600 watts. The larger the diameter hole is, the more powerful motor will be needed.





[ Oil Bathed Gearbox ]

Oil Bathed Gear Box - 3keego Cutting Tools


Unlike grease, an oil bathed gear box is in liquid state at all times. Therefore, the whole gear will be lubricated and protected by oil in cold or hot temperature for a longer service time of the magnetic drilling machine.




[ Chuck ]

A chuck, also known as arbor or tool holder attached to the motor, is available with M2, M3, M4 Morse taper. When using adapters to fit in it, any type of annular cutters can be used to drilling holes on the work piece.




Where to Use the Magnetic Drilling Machine?



A Flat, Solid, Clean, and Smooth Ferrous Metal Surface.

(a ferrous material includes iron, steel, carbon steel, alloy steel, cast iron, wrought iron, etc.)


A flat, solid, clean, and smooth ferrous metal surface - 3keego Cutting Tools


No matter which industry field, when using a magnetic drilling machine, it should be positioned on a right work piece to prevent shifting and slipping. A clean and smooth metal surface allows the magnet base adhere more strongly and steadily.


Besides, if the material is too thin (thinner than 10mm) or is non-ferrous, it's better and safer that clamping a steel sheet on top of it for stronger adhesion before drilling holes by the mag drill, especially when drilling holes horizontally or overhead. Most importantly, the magnetic drilling machine should always be fastened with a safety belt (mesh belt) to prevent the mag drill from turning or falling during losing power.



Improper material and operation for magnetic drilling machines



  • The thickness of work piece is less than 10mm (3/8") thick.
  • The magnet base not fully positioned on the work piece.
  • Put the machine on the steel plate with one or some holes.
  • Corrosion, metal chips, debris, dirt, grease, coating and paint on the work piece surface.
  • Curved or nonferrous surface without clamp or adapter.




Application of magnetic drilling machine


。Building and construction

Heavy engineering industry

Manufacturing industry

Steel fabrication industry

Maintenance Facility

Bridge and Rebuilding

Ship construction

Boiler manufacturing

Pipeline, Offshore and Oil Field

Railroad Drilling and Railway coach manufacturing

Automobile, truck, RV and other vehicle industry

Automobile Repair shop

Tower and pole construction

Machinery Rigger

Wind turbine manufacturing

Welding industry






Why Use a Magnetic Drilling Machine?



[ Convenient ]

Sometimes, the shape or size of the work piece, like ship, bridge or construction, is hard to bring to a work factory and be drilled by standing drill press. For this situation, it is convenient that just take one magnetic drill and cutters to workplace to drill holes on-site.


bring one magnetic drill to drill holes on-site - 3keego cutting tools



adhere to work piece in any position - 3keego mag drill


[ Flexible ]

The magnetic drilling machine can adhere to work piece in any position, horizontally, vertically or overhead. Besides, not only annular cutters, with a drill chuck, the magnetic drill can drill metal sheet with twist drill, step drill, and countersink.






[ Fast ]

Cut large diameter holes only on the periphery by multipoint cutting geometry on annular cutters. Also, not only save drilling time but also save the time of bringing work piece to factory since operators can drill on-site.


save drilling time - 3keego mag drill



Clean and Eco-friendly - 3keego mag drill


[ Clean and Eco-friendly ]

When using an annular cutter to make a hole, only a solid slug and minimal amount of metal chips needed to cleanup. Besides, the solid chunk can be recycled or sell back to the scrap collecting station.






How to Maintain a Magnetic Drilling Machine?


  • Always follow the operating manual.
  • A quick examination for anomalies before and after using it.
  • Do not over drive or under drive the gear.
  • Clean the chips and residual cutting fluid from the machine, slide and links.
  • Apply slight grease on the slide system and links of the machine.
  • Replace parts that are already worn or damaged.
  • Empty the cutting fluid in the container.
  • Carry the magnetic drill with packaging box for long distance.


Notice: Unplug the power cable before maintaining the machine.




How to Choose a Magnetic Drilling Machine?


  • The maximum diameter of the hole to be drilled.
  • The thickness of the material you need to drill.
  • The type of material you are going to drill.
  • The type of Annular Cutter (TCT or HSS).
  • The number of holes being drilled.
  • Work environment and space limitations.
  • Drilling speed requirements (RPM).
  • The accessories will be used.
  • The industry field you are going to apply.


Why Drill Metal with Annular Cutter in Magnetic Drill?
